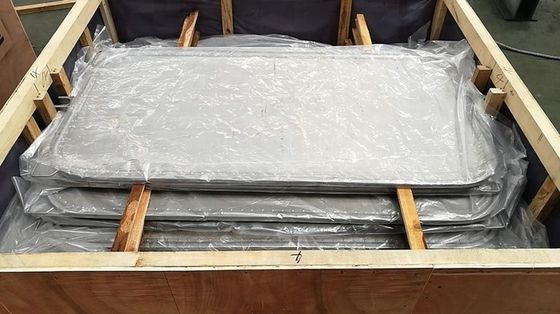

Stainless Steel Filter Screen Plate for Vertical Pressure Filter
Product Specifications
| Weight |
200 kg |
| Video Outgoing-Inspection |
Provided |
| Machinery Test Report |
Provided |
| Core Components |
Filter mesh |
| Usage |
Liquid Filter |
| Type |
Perforated Metal Mesh |
| Material |
Stainless steel |
| Hole Shape |
Diamond |
| Filter Rating |
More than 90% |
| Thickness |
1.88 mm |
| Length/Width |
Customized to filter model |
| Function |
Filter plate for Oil Filter |
| Structure |
Drainage mesh and vibrator fork |
| Filter Precision |
220 mesh |
| Filtration Area |
20m² |
| Structure Material |
Stainless steel 304 |
| Filter Surface Mesh Material |
Stainless steel 316L |
Product Description
The pressure filter mesh plate is constructed from multiple layers of stainless steel filtration materials, offering excellent resistance against acid, alkali, heat, and corrosion. These plates are widely used in oil processing, chemical production, food and pharmaceutical manufacturing, as well as solid, liquid, and gas separation in mining, metallurgy, aerospace, and machinery industries.
Wire Materials: 304, 316, 304L, 316L and special alloys
Weaving Patterns: Plain weave, twill weave, dutch weave

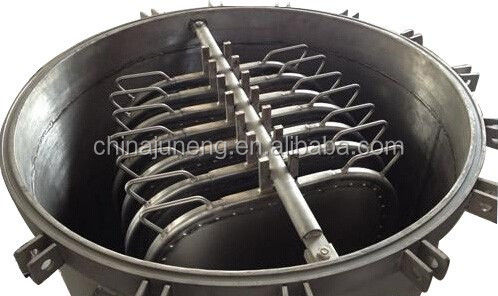

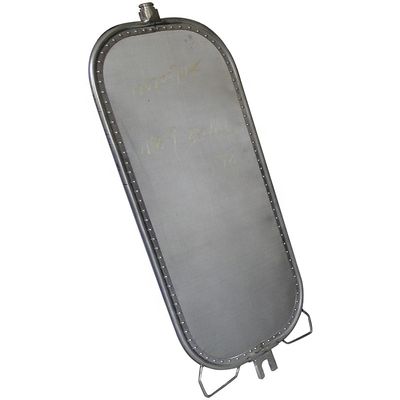

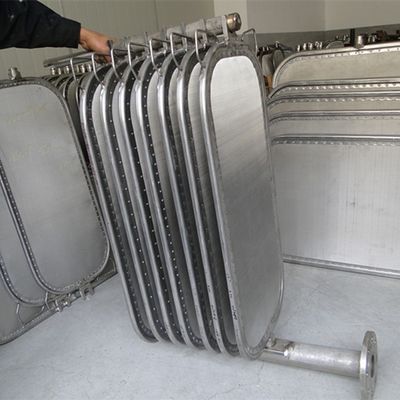

Filter Leaf Construction
Filter leafs are the core component ensuring optimal filtration performance. Our bolted-type leaf design allows for easy on-site remeshing when required.
3 Layer Filter Plates:
- Support: 1 layer mesh 4×4
- Filtration: 2 layers media 24×110
5 Layer Filter Plates:
- Support: 1 layer mesh 4×4
- Drainage: 2 layer mesh 8×8
- Filtration: 2 layers media 24×110
Related Products
Certifications
About Juneng Group
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filtration and separation equipment including filters, separators, decanter centrifuges, and pumps. With four factories located in Nanjing and Yixing City, we maintain strict quality control and offer comprehensive customer service.
Our company holds CE certificates, ASME U certificate, and ISO 9001 certification. Our products are distributed throughout China and exported to numerous countries including USA, Germany, Korea, Japan, and more.
Quality Assurance
- Factory visit/audit available prior to purchase
- Material inspection during manufacturing and before shipment
- Strict compliance with technical requirements
