NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching

NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching

Großes Bild :  NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching

Produktdetails:
Herkunftsort: Jiangsu, China
Markenname: Juneng
Zahlung und Versand AGB:
Min Bestellmenge: 1 Set
Preis: $7,760-8,000 / set
Kontakt

NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching

Beschreibung
Gewicht: 1000 kg Filtrationsbereich: 2-80 ㎡
Filterkuchenvolumen: 30-1600 l Behandlungskapazität: 0,4-21
Arbeitsdruck: 0,1-0,68 MPa Arbeitstemperatur: ≤ 150 °C
Maschinenvolumen: 120-7200 l Material: Edelstahl
Betriebstyp: vollständig geschlossen Rückstandsabgabe: Pneumatikventil
Paketgröße: 123*456*789 cm Paketgewicht: 1,2 T
Filtrations-Art: Aktiviertes Kohlenstoff/Bleichmittel Vibrationsreste: Ja
Kontinuierlicher Betrieb: Ja
Hervorheben:

Pressure Leaf Filter Machine 1000kg

,

Oil Bleaching Pressure Leaf Filter

,

Industrial Pressure Filter with Warranty

Oil Bleaching Pressure Leaf Filter Machine
Product Specifications
Attribute Value
Condition New
Weight (kg) 1000
Warranty 1 Year
Product Description

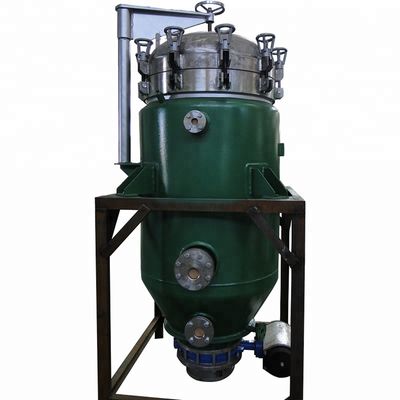

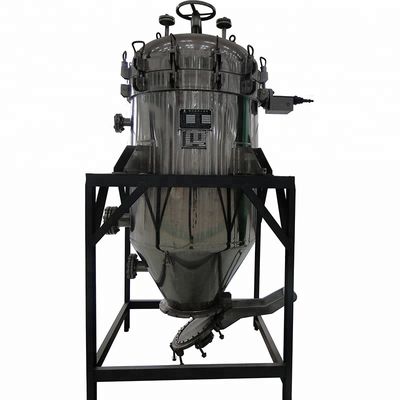

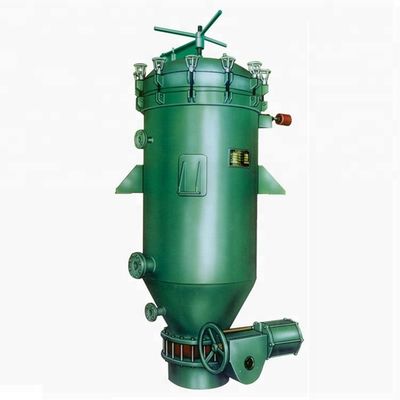

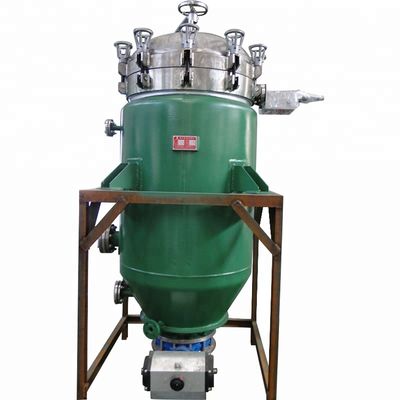

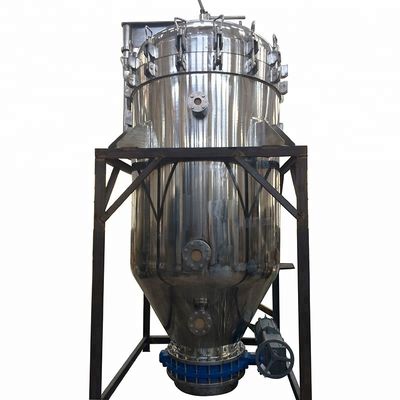

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

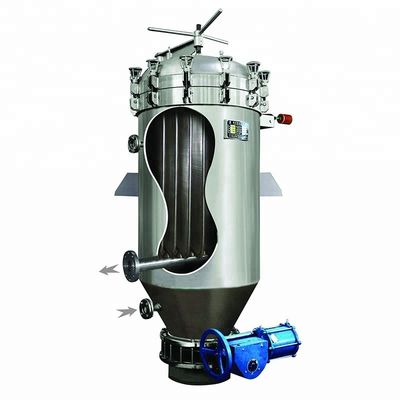

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 0 NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 1
Technical Specifications
Model Filtration area (㎡) Filter cake volume (L) Treatment Capacity Work Pressure (Mpa) Work temperature (℃) Machine volume (L)
Oil Resin Beverage Rated pressure Max pressure
NYB-2 2 30 0.4-0.6 1-1.5 0.1-0.4 0.5 ≤150 120
NYB-4 4 60 0.5-1.2 2-3 2-5 0.5 ≤150 250
NYB-7 7 105 1-1.8 3-6 4-7 0.5 ≤150 420
NYB-10 10 150 1.6-3 5-8 6-9 0.5 ≤150 800
NYB-12 12 240 2-4 6-9 8-11 0.5 ≤150 1000
NYB-15 15 300 3-5 7-12 10-13 0.5 ≤150 1300
NYB-20 20 400 4-6 9-15 12-17 0.5 ≤150 1680
NYB-25 25 500 5-7 12-19 16-21 0.5 ≤150 1900
NYB-30 30 600 6-8 14-23 19-25 0.5 ≤150 2300
NYB-36 36 720 7-9 16-27 23-31 0.5 ≤150 2650
NYB-40 40 800 8-11 21-34 30-38 0.5 ≤150 2900
NYB-45 45 900 9-13 24-34 36-44 0.5 ≤150 3200
NYB-52 52 1040 10-15 27-45 42-51 0.5 ≤150 3800
NYB-60 60 1200 11-17 30-52 48-60 0.5 ≤150 4500
NYB-70 70 1400 12-19 36-60 56-68 0.5 ≤150 5800
NYB-80 80 1600 13-21 40-68 64-78 0.5 ≤150 7200
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 2 NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 3 NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 4
Main Features
  • No cloth or filter paper required, significantly reducing filtration costs
  • Fully closed operation is environmentally friendly with no material loss
  • Vibration residue falling reduces labor intensity and enables continuous operation
  • Residue discharging through pneumatic valve minimizes worker labor intensity
  • Capable of activated carbon (carclazyte) filtering or bleaching filtering, completely replacing plate and frame filters
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 5 NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 6
Related Products
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 7
91.8% Response Rate
Milk Separator
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 8
91.8% Response Rate
Decanter Centrifuge
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 9
91.8% Response Rate
Multi-function Filter
Certifications
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 10
Our Service
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 11 NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 12
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing available
After-Sales Service
  • Installation training
  • Machine operation training
  • Overseas engineer support available
Packing & Delivery
NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 13
Size 123 (L) * 456 (W) * 789 (D)
Weight 1.2 T
Packaging Details The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. If container is too tight, we will use PE film for packing or pack it according to customer's special request.
Exhibitions We Attended

We have attended various exhibitions during these years, such as Canton Fair.

NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 14 NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 15 NYB Pressure Leaf Filter Machine 1000kg for Oil Bleaching 16
