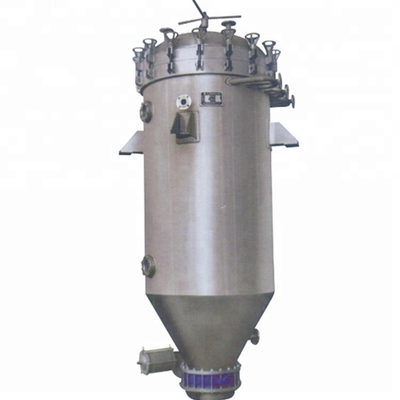

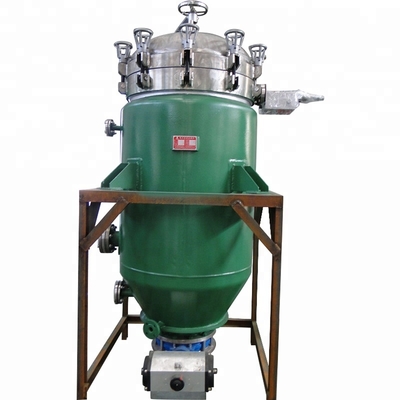

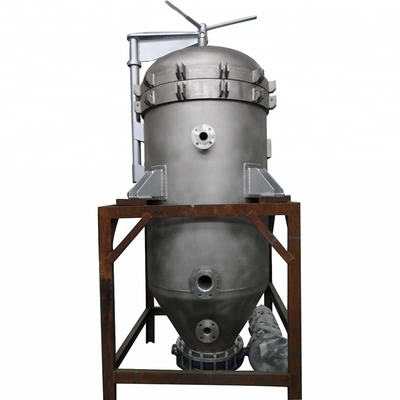

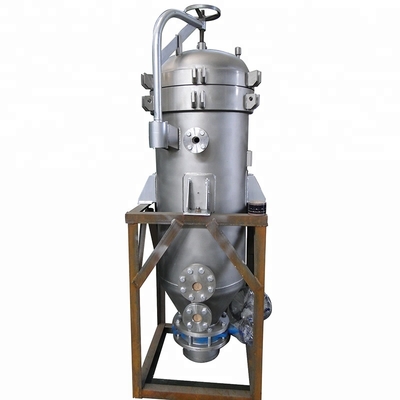

NYB-12 Vertical Leaf Oil Filter 12m2 Filtration Area 2-4T/H Capacity

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

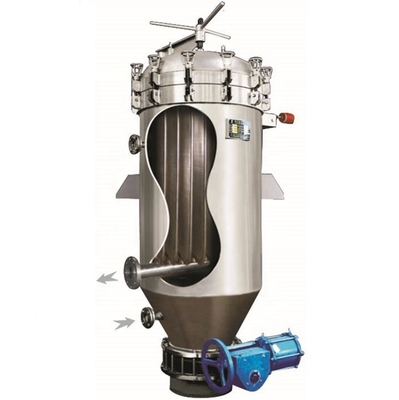

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

• No cloth or filter paper required, significantly reducing filtration costs
• Fully closed operation is environmentally friendly with no material loss
• Vibration residue falling reduces labor intensity and enables continuous operation
• Residue discharging through pneumatic valve reduces worker labor intensity
• Can completely replace plate and frame filters with activated carbon filtering capability

• 11 filter leaves provide 12m² filtration area
• Leaves made with 1.8mm 316L stainless steel box channel
• Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316)
• Leaf bottom with outlet nozzle with Viton rubber "O"ring seal

• DN 400 butterfly valve (wafer type) for dry cake discharge
• High quality butterfly valve with NH-S seat material (up to 150°C)
• Includes pneumatic actuator (double acting) with 5.5 Bar air supply

• Inquiry and consulting support
• Sample testing support
• Factory visit available

• Installation and operation training
• Engineers available for overseas service
• Prompt response within 2 hours for domestic issues

Standard packaging is wooden box. For European exports, wooden boxes are fumigated. Alternative packaging available upon request.
